Statement: Action, Type: Supporting
Split
Format: initial-action-statement Split { support-action } dest-support-action
where
-
initial-action-statement = any valid action statement that use these identifiers listed below:
-
support-action = if applicable, any one of the valid destination supporting action identifierslisted below:
-
integer, Record Data
-
-
dest-support-action = any one of the valid destination supporting action identifiers listed below:
Description
The Split is a supporting action identifier that is referencing the split inside layouts.
When referencing the Copy Last and Track Last action statements and a roulette number appears, the Split identifier will return the appropriate split layout type. Since some numbers have overlapping lines, only the nearest split layout will be selected. This reference can then be applied to the dest-support-action.
 |
The Split identifier will ignore the number 0 and 00. |
When referencing one of the Calculate action statements, the Split identifier will read the statistical data for the appropriate Calculate action statement and store the statistical total data to the dest-support-action. The data that was retrieved from one of the Calculate action statements can be viewed from the Statistical Totals section of the Split statistics view
Example 1
We want to keep track of the split type of the last number that has appeared. The following example will perform this task.
| RX Script |  Copy Code |
|---|---|
Copy Last Split to the Record "line reference" layout |
|

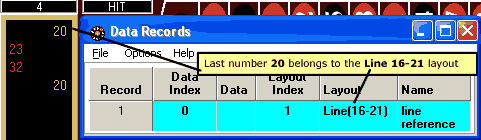

Results from example 1
Example 2
The example demonstrates the correct syntax to read the statistical mean data from the statistical total section for the Split layout into the data record split mean.
| RX Script | Copy Code |
|---|---|
Calculate Mean of Split to Record "split mean" Data |
|
